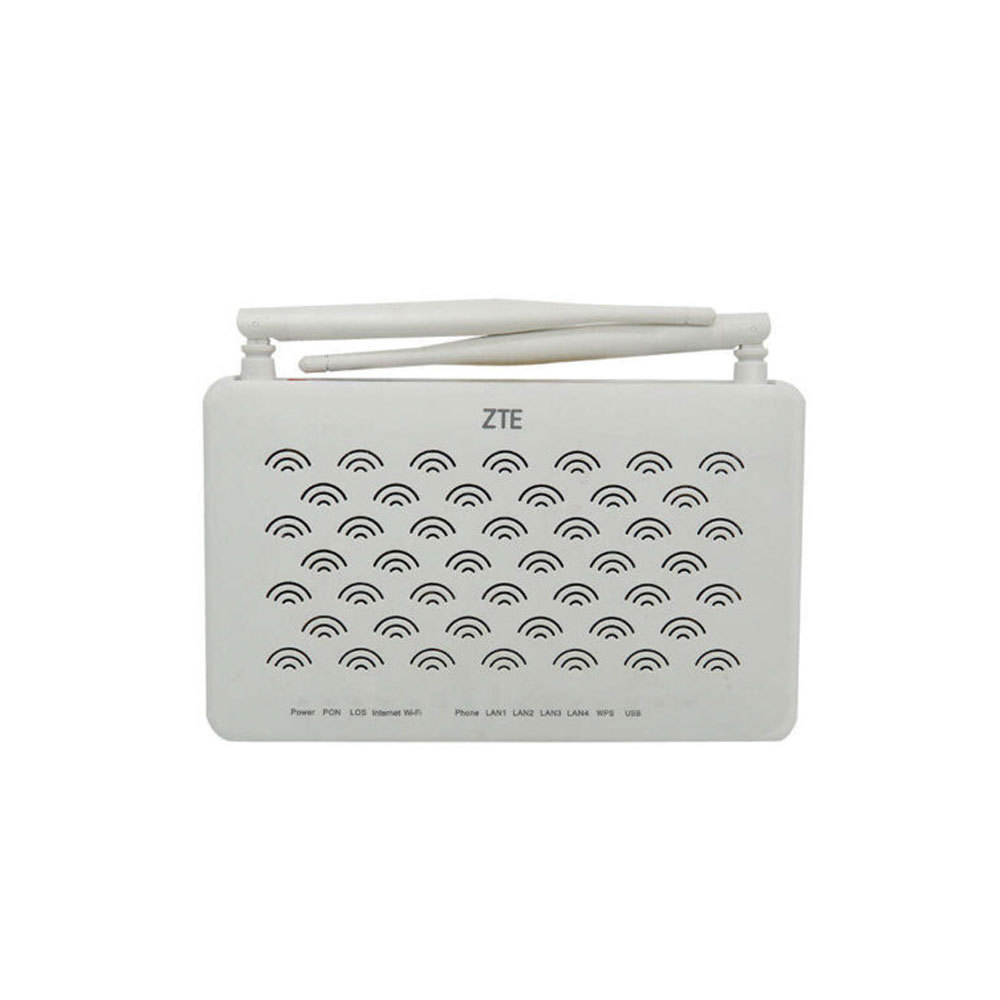

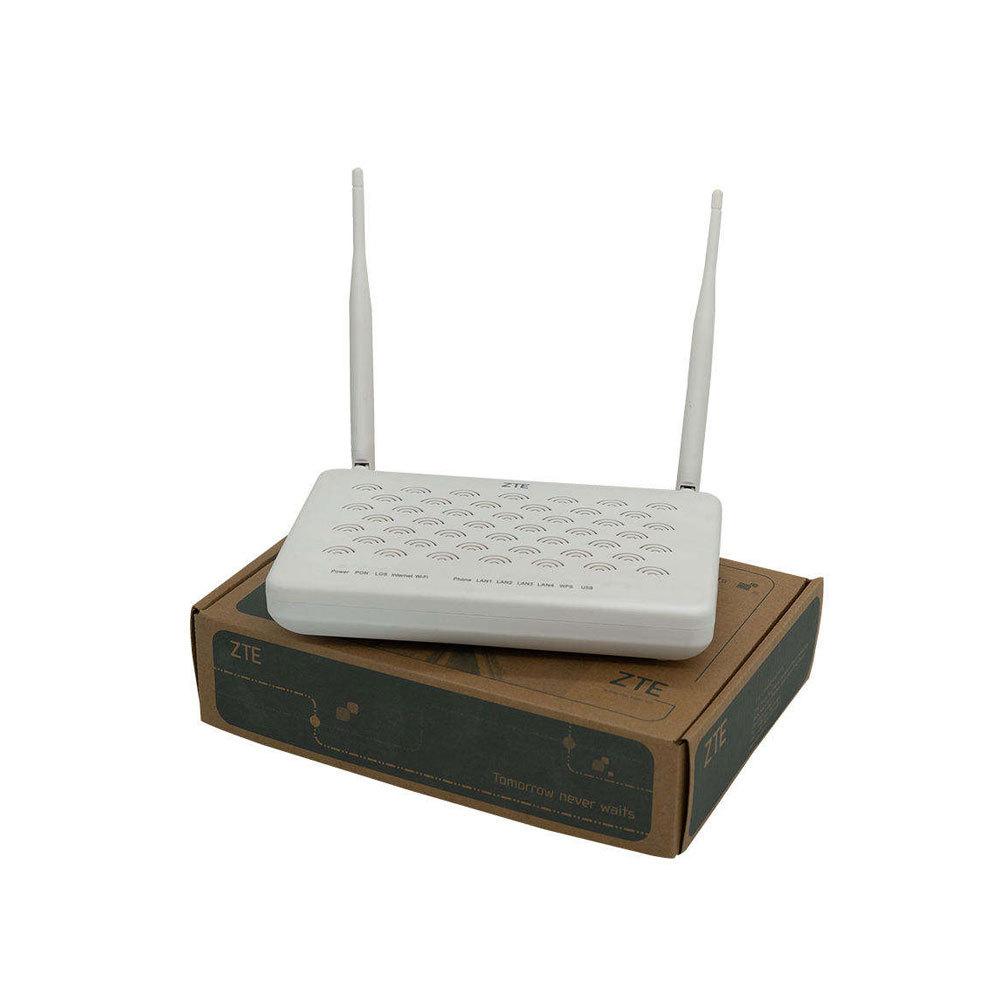

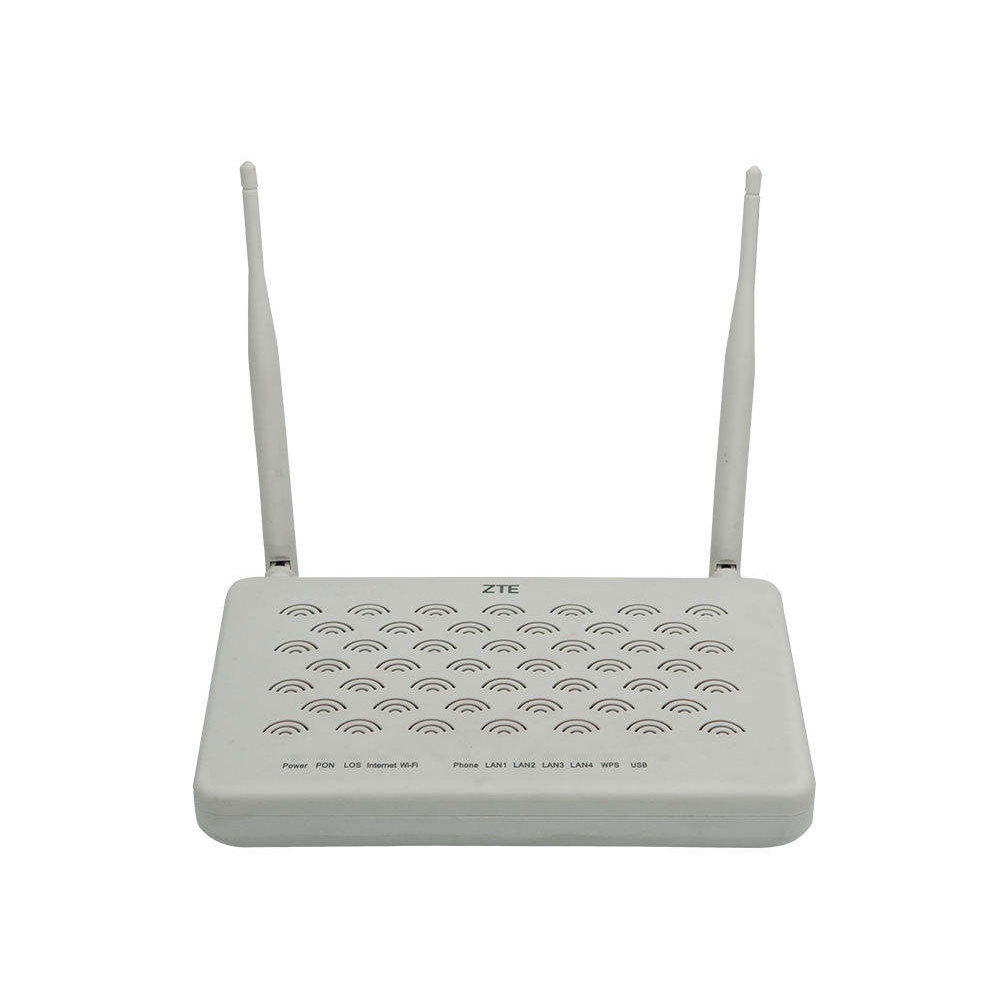

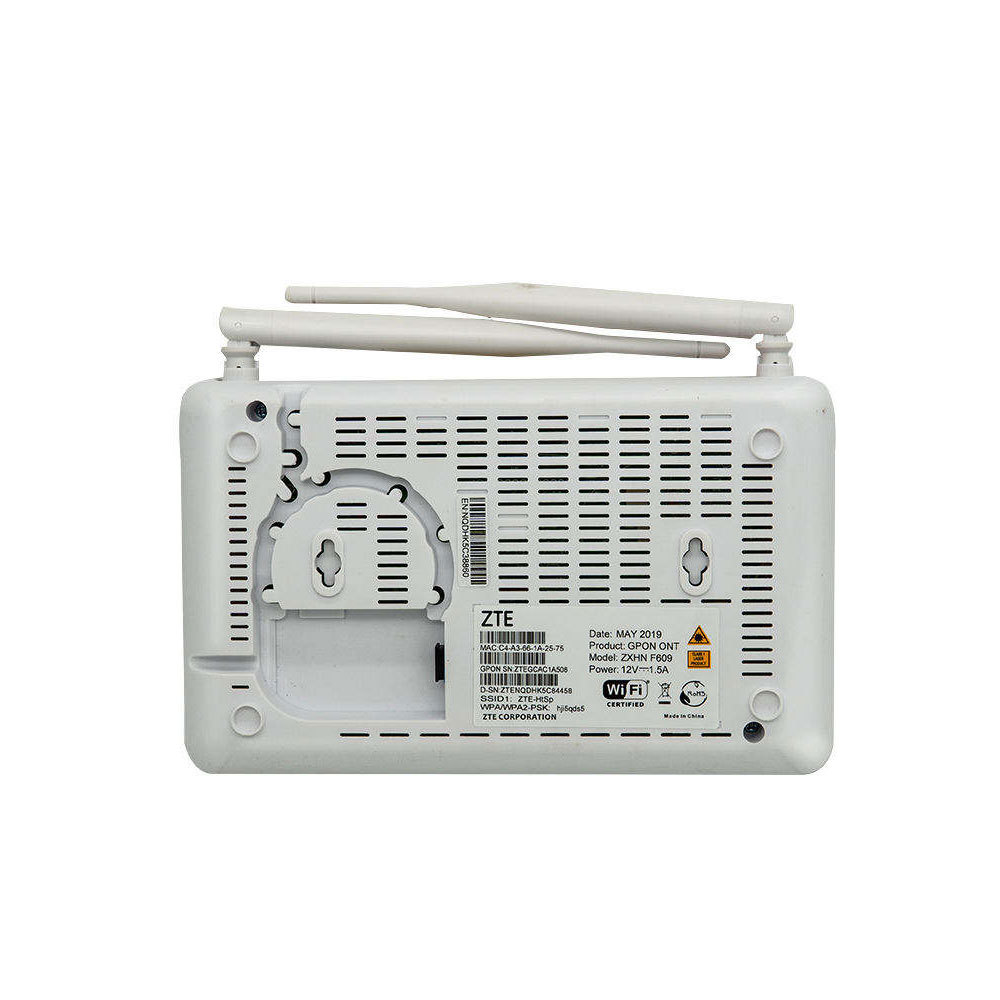

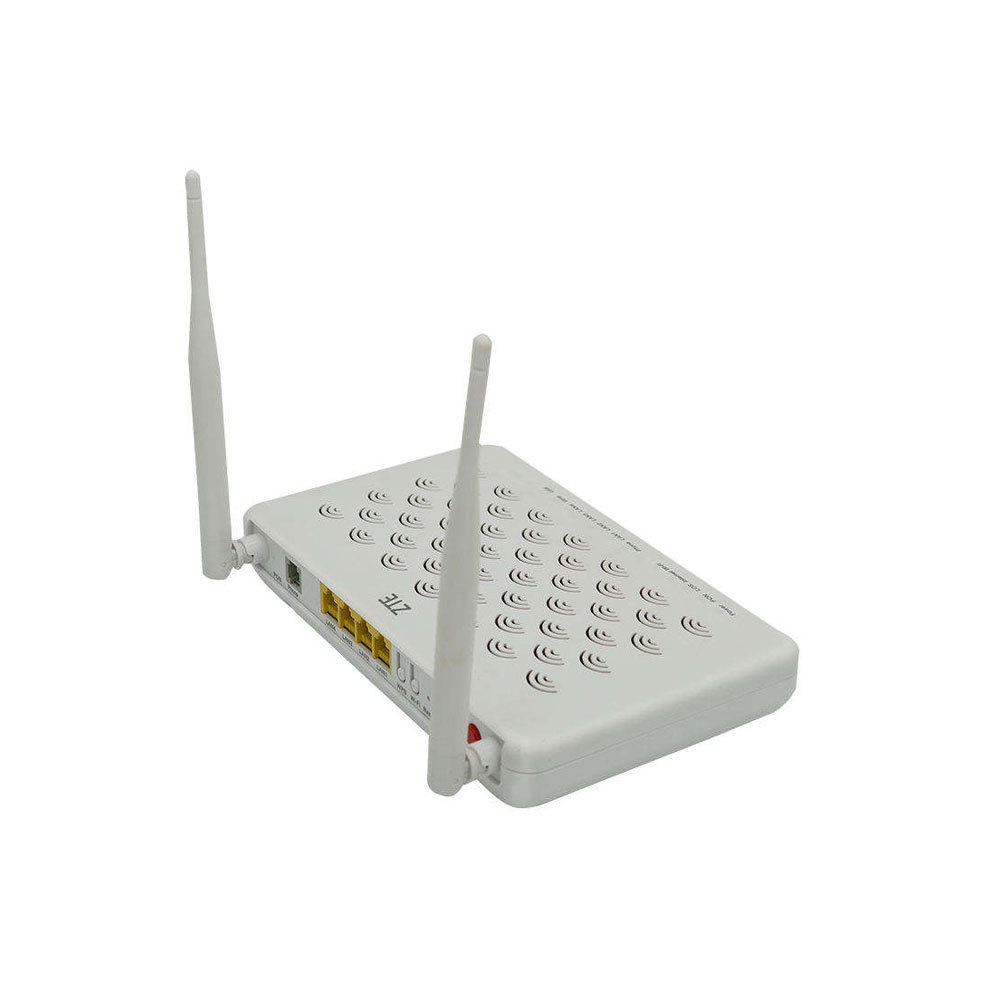

ZTE ZXHN F609 FTTH is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colourful, individualized, convenient and comfortable triple-play services including voice, video (IPTV/CATV) and high-speed internet access. it supports desktop mounting, wall mounting and network cabinet mounting.
| Spicification of F609 ONT | |
| GPON features | Optical port: 1 x GPON interface (SC/PC) |
| Transmission distance: 20 km | |
| Transmission speed: download: 2.488 Gb/s upload: 1.244 Gb/s |
|
| User network interface | 1 x 10/100/1000 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation |
| 3 x 10/100 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation | |
| 1 x POTS interface | |
| 1 x Wi-Fi interface: IEEE 802.11b/g/n 2.4 GHz | |
| 2 x Wi-Fi antennas | |
| 1 x USB 2.0 host interface | |
| Optical module | Reception: 1480-1500 nm |
| Transmitting: 1290-1330 nm | |
| Receiver sensitivity: -28 dBm | |
| Transmitter optical power: 0.5 to 5 dBm | |
| Main features |
|
| Supported services | VoIP, Internet, IPTV |
| GPON | 8 x T-CONT, 32 x GEM port |
| VLAN | 802.1Q, 802.1P, 802.1ad |
| MC address table | 1K |
| L3 functions | DHCP server/client, DNS client, NAT |
| IPv6 | Double stack, DS-Lite |
| VoIP | SIP/H.248, G.711/G.722/G.279, T.30/T.38 |
| Wi-Fi | 4 x SSID, 2x2 MIMO, WPS |
| Wi-Fi authentication | Common Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA2-Enterprise |
| Multicast | IGMP v1/v2/snooping/Proxy, MLD v1 snooping |
| Multicast group per user port | 256 |
| QoS | Flow classification for services based on physical ports, MAC address, VLAN ID, VLAN priority level, IP address, SP/WRR/SP WRR |
| Management | Local Web, OMCI, TR069 |
| USB | DLNA DMS, USB backup, 3G/LTE adapter |
Features of ONU
To better understand its functions, here are the key features of an ONU:
Triple Play Services: Supports data, IPTV, and VoIP services, catering to the needs of both residential and commercial users.
Bidirectional Data Transmission: Receives broadcast data from the OLT while sending back user-generated data through assigned transmission windows.
Ethernet Data Buffering: Temporarily stores Ethernet data before transmitting it to the OLT, optimizing data flow.
Remote Management via OAM: Enables remote Operation, Administration, and Maintenance (OAM), allowing service providers to monitor and configure ONUs efficiently.
Security and Quality of Service (QoS): Many ONUs offer enhanced security features and Quality of Service (QoS) support, ensuring reliable performance for different applications.
Applications of ONU
RF/CATV Port: Used for connecting to cable television.
Power Interface: Provides power connectivity.
USB Port: Typically a USB 2.0 interface.
LAN Port: Supports FE (10/100BASE-T) or GE (10/100/1000BASE-T) options.
Telephone Port: Also known as POT, VoIP, Voice, or FXS port.
Optical Port: Connects to the Optical Distribution Network (ODN).
Antenna: Provides Wi-Fi connectivity, supporting 2.4 GHz Wi-Fi or dual-band 2.4 GHz/5 GHz Wi-Fi.
Where is the ONU located in FTTx?
Depending on the FTTx (Fiber to the x) technology used, the ONU can be placed in different locations. Different types of FTTx technologies include:
FTTC (Fiber to the Curb): The ONU is placed at a distribution point near the curb or in a cabinet close to user premises.
FTTB (Fiber to the Building): The ONU is installed in a communication cabinet or wiring closet inside the building.
FTTN (Fiber to the Node): The ONU is located at a remote node or access point, typically serving a neighborhood or cluster of users.
FTTH (Fiber to the Home): The ONU is placed inside the home of the end-user.
